#include <Polyhedron.h>

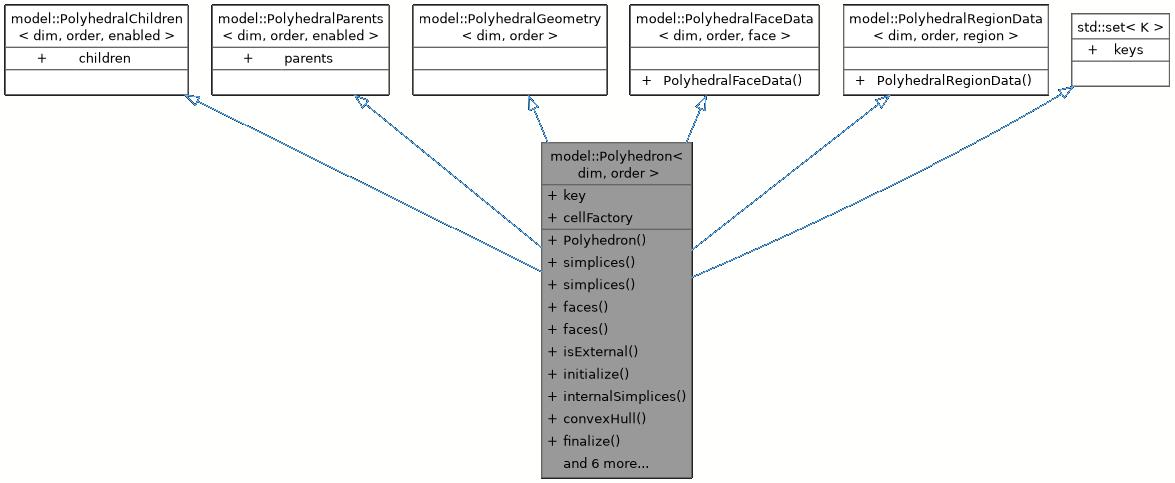

Inheritance diagram for model::Polyhedron< dim, order >:

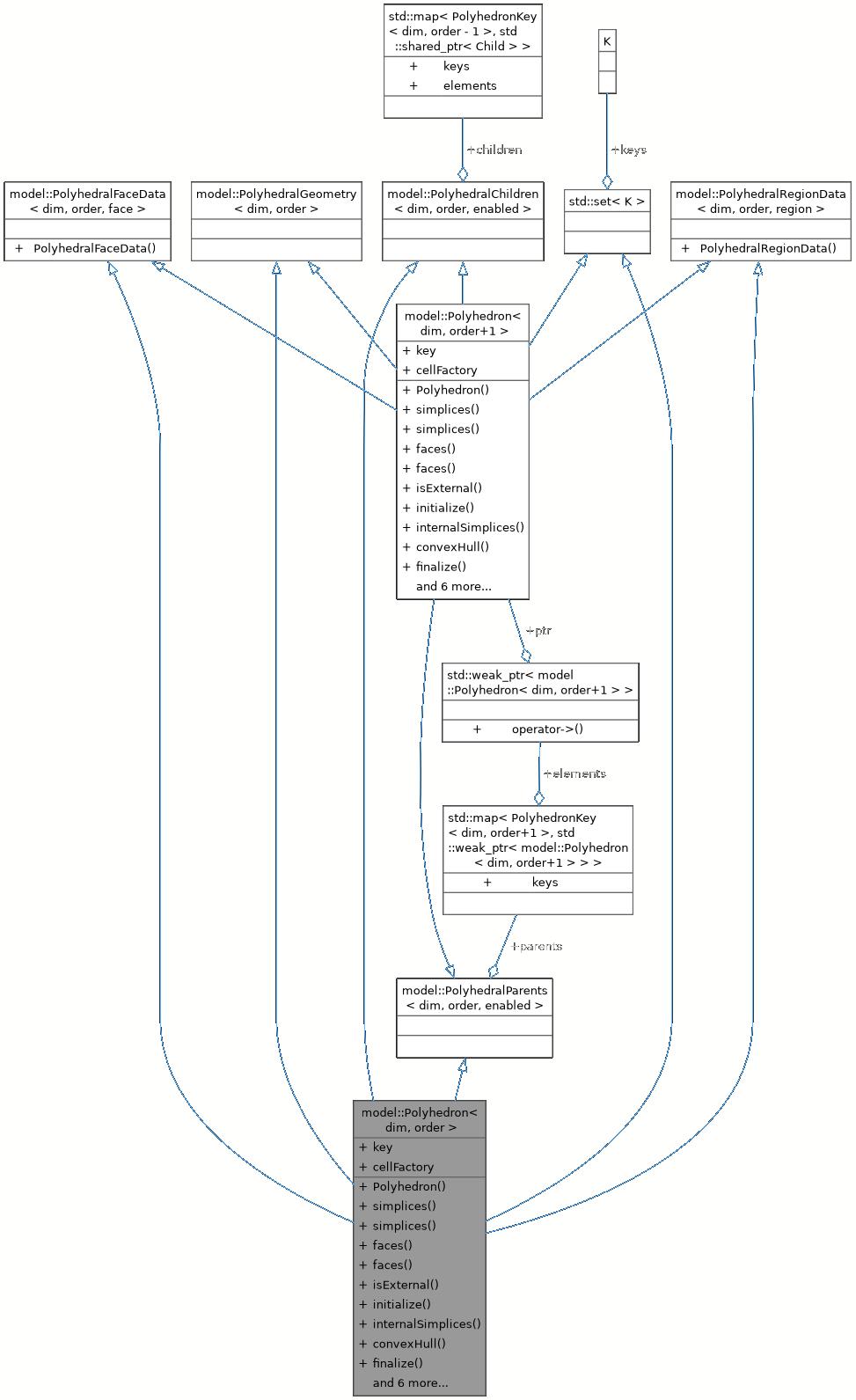

Collaboration diagram for model::Polyhedron< dim, order >:

Public Types
using	KeyType = PolyhedronKey<dim, order>
using	CompareType = std::less<KeyType>
using	VectorDim = Eigen::Matrix<double, dim, 1>
using	SimplexType = Simplex<dim, order>
using	SimplexContainerType = std::set<const SimplexType *>
using	MeshFacesContainerType = std::map<size_t, std::shared_ptr<Polyhedron<dim, dim - 1>>>
Public Types inherited from model::PolyhedralChildren< dim, order, enabled >
using	Child = Polyhedron<dim, order - 1>
using	Children = std::map<PolyhedronKey<dim, order - 1>, std::shared_ptr<Child>>
Public Types inherited from model::PolyhedralParents< dim, order, enabled >
using	Parent = Polyhedron<dim, order + 1>

Public Member Functions
	Polyhedron (PolyhedronFactory< dim, order > &factory, const KeyType &id)
const SimplexContainerType &	simplices () const
SimplexContainerType &	simplices ()
const MeshFacesContainerType &	faces () const
MeshFacesContainerType &	faces ()
bool	isExternal () const
void	initialize (const SimplexType *simplex)
const SimplexContainerType &	internalSimplices () const
const std::vector< const Simplex< dim, 0 > * > &	convexHull () const
void	finalize ()
VectorDim	outNormal () const
VectorDim	outNormal (const int &regionID) const
const VectorDim &	center () const
Plane< dim >	asPlane () const
VectorDim	outNormal (const std::set< size_t > &ids) const
void	update ()
Public Member Functions inherited from model::PolyhedralFaceData< dim, order, face >
template<typename Key>
	PolyhedralFaceData (const Key &)
Public Member Functions inherited from model::PolyhedralRegionData< dim, order, region >
template<typename Key>
	PolyhedralRegionData (const Key &)

Public Attributes
const KeyType	key
PolyhedronFactory< dim, order > &	cellFactory
Public Attributes inherited from model::PolyhedralChildren< dim, order, enabled >
Children	children
Public Attributes inherited from model::PolyhedralParents< dim, order, enabled >
std::map< PolyhedronKey< dim, order+1 >, std::weak_ptr< Parent > >	parents

Detailed Description

template<int dim, int order>
struct model::Polyhedron< dim, order >

Definition at line 108 of file Polyhedron.h.

Member Typedef Documentation

◆ CompareType

template<int dim, int order>

using model::Polyhedron< dim, order >::CompareType = std::less<KeyType>

Definition at line 117 of file Polyhedron.h.

◆ KeyType

template<int dim, int order>

using model::Polyhedron< dim, order >::KeyType = PolyhedronKey<dim, order>

Definition at line 116 of file Polyhedron.h.

◆ MeshFacesContainerType

template<int dim, int order>

using model::Polyhedron< dim, order >::MeshFacesContainerType = std::map<size_t, std::shared_ptr<Polyhedron<dim, dim - 1>>>

Definition at line 121 of file Polyhedron.h.

◆ SimplexContainerType

template<int dim, int order>

using model::Polyhedron< dim, order >::SimplexContainerType = std::set<const SimplexType *>

Definition at line 120 of file Polyhedron.h.

◆ SimplexType

template<int dim, int order>

using model::Polyhedron< dim, order >::SimplexType = Simplex<dim, order>

Definition at line 119 of file Polyhedron.h.

◆ VectorDim

template<int dim, int order>

using model::Polyhedron< dim, order >::VectorDim = Eigen::Matrix<double, dim, 1>

Definition at line 118 of file Polyhedron.h.

Constructor & Destructor Documentation

◆ Polyhedron()

template<int dim, int order>

model::Polyhedron< dim, order >::Polyhedron	(	PolyhedronFactory< dim, order > &	factory,
		const KeyType &	id )

inline

Definition at line 124 of file Polyhedron.h.

Member Function Documentation

◆ asPlane()

template<int dim, int order>
requires (order == dim - 1)

Plane< dim > model::Polyhedron< dim, order >::asPlane ( ) const

Definition at line 226 of file Polyhedron.cpp.

◆ center()

template<int dim, int order>
requires (order == dim - 1)

const Eigen::Matrix< double, dim, 1 > & model::Polyhedron< dim, order >::center ( ) const

Definition at line 218 of file Polyhedron.cpp.

◆ convexHull()

template<int dim, int order>
requires (order == dim - 1)

const std::vector< const Simplex< dim, 0 > * > & model::Polyhedron< dim, order >::convexHull ( ) const

Definition at line 99 of file Polyhedron.cpp.

◆ faces() [1/2]

template<int dim, int order>

MeshFacesContainerType & model::Polyhedron< dim, order >::faces ( )

inline

Definition at line 141 of file Polyhedron.h.

◆ faces() [2/2]

template<int dim, int order>

const MeshFacesContainerType & model::Polyhedron< dim, order >::faces ( ) const

inline

Definition at line 136 of file Polyhedron.h.

◆ finalize()

template<int dim, int order>
requires (order == dim - 1)

void model::Polyhedron< dim, order >::finalize ( )

Todo: This function uses ConvexHull and therefore will yield a wrong face boundary for non-convex faces. In order to support non-convex faces we need to have a structure with face edges.

Definition at line 107 of file Polyhedron.cpp.

◆ initialize()

template<int dim, int order>
requires (order == dim - 1)

void model::Polyhedron< dim, order >::initialize ( const SimplexType * simplex )

Definition at line 90 of file Polyhedron.cpp.

◆ internalSimplices()

template<int dim, int order>

const SimplexContainerType & model::Polyhedron< dim, order >::internalSimplices ( ) const

inline

Definition at line 153 of file Polyhedron.h.

◆ isExternal()

template<int dim, int order>

bool model::Polyhedron< dim, order >::isExternal ( ) const

inline

Definition at line 146 of file Polyhedron.h.

◆ outNormal() [1/3]

template<int dim, int order>
requires (order == dim - 1)

Eigen::Matrix< double, dim, 1 > model::Polyhedron< dim, order >::outNormal ( ) const

Definition at line 200 of file Polyhedron.cpp.

◆ outNormal() [2/3]

template<int dim, int order>
requires (order == dim - 1)

Eigen::Matrix< double, dim, 1 > model::Polyhedron< dim, order >::outNormal ( const int & regionID ) const

Definition at line 208 of file Polyhedron.cpp.

◆ outNormal() [3/3]

template<int dim, int order>
requires (order == dim)

Polyhedron< dim, order >::VectorDim model::Polyhedron< dim, order >::outNormal ( const std::set< size_t > & ids ) const

Definition at line 77 of file Polyhedron.cpp.

◆ simplices() [1/2]

template<int dim, int order>

SimplexContainerType & model::Polyhedron< dim, order >::simplices ( )

inline

Definition at line 132 of file Polyhedron.h.

◆ simplices() [2/2]

template<int dim, int order>

const SimplexContainerType & model::Polyhedron< dim, order >::simplices ( ) const

inline

Definition at line 128 of file Polyhedron.h.

◆ update()

template<int dim, int order>
requires (order == dim)

void model::Polyhedron< dim, order >::update ( )

Definition at line 71 of file Polyhedron.cpp.

Member Data Documentation

◆ cellFactory

template<int dim, int order>

PolyhedronFactory<dim, order>& model::Polyhedron< dim, order >::cellFactory

Definition at line 123 of file Polyhedron.h.

◆ key

template<int dim, int order>

const KeyType model::Polyhedron< dim, order >::key

Definition at line 122 of file Polyhedron.h.

The documentation for this struct was generated from the following files:
