#include <PeriodicLatticeInterpolant.h>

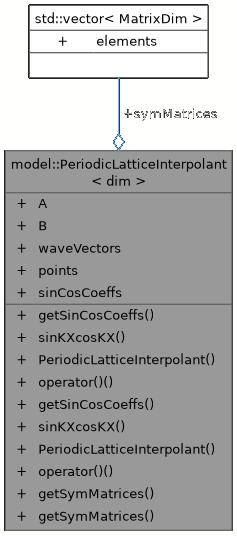

Collaboration diagram for model::PeriodicLatticeInterpolant< dim >:

Public Types
typedef Eigen::Matrix< double, dim, 1 >	VectorDim
typedef Eigen::Matrix< size_t, dim, 1 >	VectorDimI
typedef Eigen::Matrix< double, dim, dim >	MatrixDim
typedef Eigen::Matrix< double, dim, 1 >	VectorDim
typedef Eigen::Matrix< size_t, dim, 1 >	VectorDimI
typedef Eigen::Matrix< double, dim, dim >	MatrixDim

Public Member Functions
Eigen::MatrixXd	getSinCosCoeffs (const Eigen::Matrix< double, Eigen::Dynamic, dim+1 > &f) const
std::pair< double, double >	sinKXcosKX (const int &r, const VectorDim &x) const
	PeriodicLatticeInterpolant (const MatrixDim &A_in, const Eigen::Matrix< double, Eigen::Dynamic, dim > &waveVectors_in, const Eigen::Matrix< double, Eigen::Dynamic, dim+1 > &f, const int &rotSymm, const std::vector< Eigen::Matrix< double, dim, 1 > > &N)
double	operator() (const VectorDim &x) const
Eigen::MatrixXd	getSinCosCoeffs (const Eigen::Matrix< double, Eigen::Dynamic, dim+1 > &f) const
std::pair< double, double >	sinKXcosKX (const int &r, const VectorDim &x) const
	PeriodicLatticeInterpolant (const MatrixDim &A_in, const Eigen::Matrix< double, Eigen::Dynamic, dim > &waveVectors_in, const Eigen::Matrix< double, Eigen::Dynamic, dim+1 > &f, const int &rotSymm, const std::vector< Eigen::Matrix< double, dim, 1 > > &N)
double	operator() (const VectorDim &x) const

Static Public Member Functions
static std::vector< MatrixDim >	getSymMatrices (const int &rotSymm, const std::vector< Eigen::Matrix< double, dim, 1 > > &mirSymm)
static std::vector< MatrixDim >	getSymMatrices (const int &rotSymm, const std::vector< Eigen::Matrix< double, dim, 1 > > &mirSymm)

Public Attributes
const MatrixDim	A
const MatrixDim	B
const Eigen::Matrix< double, Eigen::Dynamic, dim >	waveVectors
const std::vector< MatrixDim >	symMatrices
const Eigen::Matrix< double, Eigen::Dynamic, dim+1 >	points
const Eigen::Matrix< double, Eigen::Dynamic, 2 >	sinCosCoeffs

Detailed Description

template<int dim>
struct model::PeriodicLatticeInterpolant< dim >

Definition at line 21 of file Lattices/PeriodicLatticeInterpolant.h.

Member Typedef Documentation

◆ MatrixDim [1/2]

template<int dim>

typedef Eigen::Matrix<double,dim,dim> model::PeriodicLatticeInterpolant< dim >::MatrixDim

Definition at line 26 of file Lattices/PeriodicLatticeInterpolant.h.

◆ MatrixDim [2/2]

template<int dim>

typedef Eigen::Matrix<double,dim,dim> model::PeriodicLatticeInterpolant< dim >::MatrixDim

Definition at line 26 of file Lattices_NEW/PeriodicLatticeInterpolant.h.

◆ VectorDim [1/2]

template<int dim>

typedef Eigen::Matrix<double,dim,1> model::PeriodicLatticeInterpolant< dim >::VectorDim

Definition at line 24 of file Lattices/PeriodicLatticeInterpolant.h.

◆ VectorDim [2/2]

template<int dim>

typedef Eigen::Matrix<double,dim,1> model::PeriodicLatticeInterpolant< dim >::VectorDim

Definition at line 24 of file Lattices_NEW/PeriodicLatticeInterpolant.h.

◆ VectorDimI [1/2]

template<int dim>

typedef Eigen::Matrix<size_t,dim,1> model::PeriodicLatticeInterpolant< dim >::VectorDimI

Definition at line 25 of file Lattices/PeriodicLatticeInterpolant.h.

◆ VectorDimI [2/2]

template<int dim>

typedef Eigen::Matrix<size_t,dim,1> model::PeriodicLatticeInterpolant< dim >::VectorDimI

Definition at line 25 of file Lattices_NEW/PeriodicLatticeInterpolant.h.

Constructor & Destructor Documentation

◆ PeriodicLatticeInterpolant() [1/2]

template<int dim>

model::PeriodicLatticeInterpolant< dim >::PeriodicLatticeInterpolant	(	const MatrixDim &	A_in,
		const Eigen::Matrix< double, Eigen::Dynamic, dim > &	waveVectors_in,
		const Eigen::Matrix< double, Eigen::Dynamic, dim+1 > &	f,
		const int &	rotSymm,
		const std::vector< Eigen::Matrix< double, dim, 1 > > &	N )

Parameters

[in]	A_in	the lattice matrix with lattice basis in column
[in]

Definition at line 140 of file Lattices/PeriodicLatticeInterpolant.cpp.

◆ PeriodicLatticeInterpolant() [2/2]

template<int dim>

model::PeriodicLatticeInterpolant< dim >::PeriodicLatticeInterpolant	(	const MatrixDim &	A_in,
		const Eigen::Matrix< double, Eigen::Dynamic, dim > &	waveVectors_in,
		const Eigen::Matrix< double, Eigen::Dynamic, dim+1 > &	f,
		const int &	rotSymm,
		const std::vector< Eigen::Matrix< double, dim, 1 > > &	N )

Member Function Documentation

◆ getSinCosCoeffs() [1/2]

template<int dim>

Eigen::MatrixXd model::PeriodicLatticeInterpolant< dim >::getSinCosCoeffs ( const Eigen::Matrix< double, Eigen::Dynamic, dim+1 > & f ) const

Parameters

[in]	f	Matrix of function values in each row. Each row has dim+1 entries with format x1,x2,... f(x1,x2,...)
[in]	df	Matrix of function derivatives values in each row. Each row has 2*dim+1 entries with format x1,x2,...d1,d2,... dot(grad(f(x1,x2,...)),d)

Definition at line 52 of file Lattices/PeriodicLatticeInterpolant.cpp.

◆ getSinCosCoeffs() [2/2]

template<int dim>

Eigen::MatrixXd model::PeriodicLatticeInterpolant< dim >::getSinCosCoeffs ( const Eigen::Matrix< double, Eigen::Dynamic, dim+1 > & f ) const

◆ getSymMatrices() [1/2]

template<int dim>

std::vector< typename PeriodicLatticeInterpolant< dim >::MatrixDim > model::PeriodicLatticeInterpolant< dim >::getSymMatrices	(	const int &	rotSymm,
		const std::vector< Eigen::Matrix< double, dim, 1 > > &	mirSymm )

static

Definition at line 22 of file Lattices/PeriodicLatticeInterpolant.cpp.

◆ getSymMatrices() [2/2]

template<int dim>

std::vector< MatrixDim > model::PeriodicLatticeInterpolant< dim >::getSymMatrices	(	const int &	rotSymm,
		const std::vector< Eigen::Matrix< double, dim, 1 > > &	mirSymm )
