#include <DislocationQuadraturePoint.h>

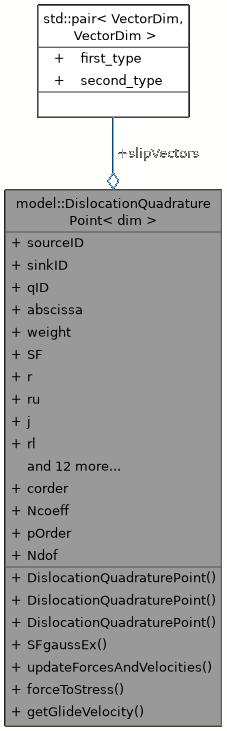

Collaboration diagram for model::DislocationQuadraturePoint< dim >:

Public Types
typedef Eigen::Matrix< double, dim, 1 >	VectorDim
typedef Eigen::Matrix< double, dim, dim >	MatrixDim
typedef Eigen::Matrix< float, dim, dim >	MatrixDimF
typedef Eigen::Matrix< double, dim, Ndof >	MatrixDimNdof
typedef Eigen::Matrix< double, Ncoeff, Ncoeff >	MatrixNcoeff
typedef Eigen::Matrix< double, Ncoeff, dim >	MatrixNcoeffDim
typedef DislocationSegment< dim >	LinkType
typedef QuadratureDynamic< 1, UniformOpen, 1, 2, 3, 4, 5, 6, 7, 8, 16, 32, 64, 128, 256, 512, 1024 >	QuadratureDynamicType
typedef QuadPowDynamic< pOrder, UniformOpen, 1, 2, 3, 4, 5, 6, 7, 8, 16, 32, 64, 128, 256, 512, 1024 >	QuadPowDynamicType

Public Member Functions
	DislocationQuadraturePoint (const LinkType &parentSegment, const int &q, const int &qOrder, const MatrixNcoeff &SFCH, const MatrixNcoeffDim &qH)
	DislocationQuadraturePoint (const size_t sourceID_in, const size_t sinkID_in, const int &q, const int &qOrder, const MatrixNcoeff &SFCH, const MatrixNcoeffDim &qH)
	DislocationQuadraturePoint ()
MatrixDimNdof	SFgaussEx () const
void	updateForcesAndVelocities (const LinkType &parentSegment, const bool &isClimbStep)
MatrixDim	forceToStress (const VectorDim &force, const VectorDim &unitTangent, const LinkType &parentSegment) const

Static Public Member Functions
static VectorDim	getGlideVelocity (const LinkType &parentSegment, const VectorDim &r, const VectorDim &fPK, const MatrixDim &S, const VectorDim &rl, const double &dL, const int &inclusionID)

Public Attributes
const size_t	sourceID
const size_t	sinkID
const int	qID
const double	abscissa
const double	weight
const Eigen::Matrix< double, 1, Ncoeff >	SF
const VectorDim	r
const VectorDim	ru
const double	j
const VectorDim	rl
const double	dL
MatrixDim	internalStress
MatrixDim	stress
VectorDim	pkForce
VectorDim	stackingFaultForce
VectorDim	lineTensionForce
VectorDim	velocity
double	elasticEnergyPerLength
double	coreEnergyPerLength
int	inclusionID
std::pair< VectorDim, VectorDim >	slipVectors
Eigen::Matrix< double, 1, ClusterDynamicsParameters< dim >::mSize >	cCD
Eigen::Matrix< double, 1, ClusterDynamicsParameters< dim >::mSize >	cDD

Static Public Attributes
static constexpr int	corder =0
static constexpr int	Ncoeff = SplineBase<dim,corder>::Ncoeff
static constexpr int	pOrder = SplineBase<dim,corder>::pOrder
static constexpr int	Ndof = SplineBase<dim,corder>::Ndof

Detailed Description

template<int dim>
struct model::DislocationQuadraturePoint< dim >

Definition at line 37 of file DislocationQuadraturePoint.h.

Member Typedef Documentation

◆ LinkType

template<int dim>

typedef DislocationSegment<dim> model::DislocationQuadraturePoint< dim >::LinkType

Definition at line 49 of file DislocationQuadraturePoint.h.

◆ MatrixDim

template<int dim>

typedef Eigen::Matrix<double,dim,dim> model::DislocationQuadraturePoint< dim >::MatrixDim

Definition at line 44 of file DislocationQuadraturePoint.h.

◆ MatrixDimF

template<int dim>

typedef Eigen::Matrix<float,dim,dim> model::DislocationQuadraturePoint< dim >::MatrixDimF

Definition at line 45 of file DislocationQuadraturePoint.h.

◆ MatrixDimNdof

template<int dim>

typedef Eigen::Matrix<double,dim,Ndof> model::DislocationQuadraturePoint< dim >::MatrixDimNdof

Definition at line 46 of file DislocationQuadraturePoint.h.

◆ MatrixNcoeff

template<int dim>

typedef Eigen::Matrix<double,Ncoeff,Ncoeff> model::DislocationQuadraturePoint< dim >::MatrixNcoeff

Definition at line 47 of file DislocationQuadraturePoint.h.

◆ MatrixNcoeffDim

template<int dim>

typedef Eigen::Matrix<double,Ncoeff,dim> model::DislocationQuadraturePoint< dim >::MatrixNcoeffDim

Definition at line 48 of file DislocationQuadraturePoint.h.

◆ QuadPowDynamicType

template<int dim>

typedef QuadPowDynamic<pOrder,UniformOpen,1,2,3,4,5,6,7,8,16,32,64,128,256,512,1024> model::DislocationQuadraturePoint< dim >::QuadPowDynamicType

Definition at line 51 of file DislocationQuadraturePoint.h.

◆ QuadratureDynamicType

template<int dim>

typedef QuadratureDynamic<1,UniformOpen,1,2,3,4,5,6,7,8,16,32,64,128,256,512,1024> model::DislocationQuadraturePoint< dim >::QuadratureDynamicType

Definition at line 50 of file DislocationQuadraturePoint.h.

◆ VectorDim

template<int dim>

typedef Eigen::Matrix<double,dim,1> model::DislocationQuadraturePoint< dim >::VectorDim

Definition at line 43 of file DislocationQuadraturePoint.h.

Constructor & Destructor Documentation

◆ DislocationQuadraturePoint() [1/3]

template<int dim>

model::DislocationQuadraturePoint< dim >::DislocationQuadraturePoint	(	const LinkType &	parentSegment,
		const int &	q,
		const int &	qOrder,
		const MatrixNcoeff &	SFCH,
		const MatrixNcoeffDim &	qH )

Definition at line 22 of file DislocationQuadraturePoint.cpp.

◆ DislocationQuadraturePoint() [2/3]

template<int dim>

model::DislocationQuadraturePoint< dim >::DislocationQuadraturePoint	(	const size_t	sourceID_in,
		const size_t	sinkID_in,
		const int &	q,
		const int &	qOrder,
		const MatrixNcoeff &	SFCH,
		const MatrixNcoeffDim &	qH )

Definition at line 64 of file DislocationQuadraturePoint.cpp.

◆ DislocationQuadraturePoint() [3/3]

template<int dim>

model::DislocationQuadraturePoint< dim >::DislocationQuadraturePoint ( )

Definition at line 96 of file DislocationQuadraturePoint.cpp.

Member Function Documentation

◆ forceToStress()

template<int dim>

DislocationQuadraturePoint< dim >::MatrixDim model::DislocationQuadraturePoint< dim >::forceToStress	(	const VectorDim &	force,
		const VectorDim &	unitTangent,
		const LinkType &	parentSegment ) const

Definition at line 304 of file DislocationQuadraturePoint.cpp.

◆ getGlideVelocity()

template<int dim>

DislocationQuadraturePoint< dim >::VectorDim model::DislocationQuadraturePoint< dim >::getGlideVelocity	(	const LinkType &	parentSegment,
		const VectorDim &	r,
		const VectorDim &	fPK,
		const MatrixDim &	S,
		const VectorDim &	rl,
		const double &	dL,
		const int &	inclusionID )
