model::StressStraight< dim, Scalar > Class Template Reference

#include <StressStraight.h>

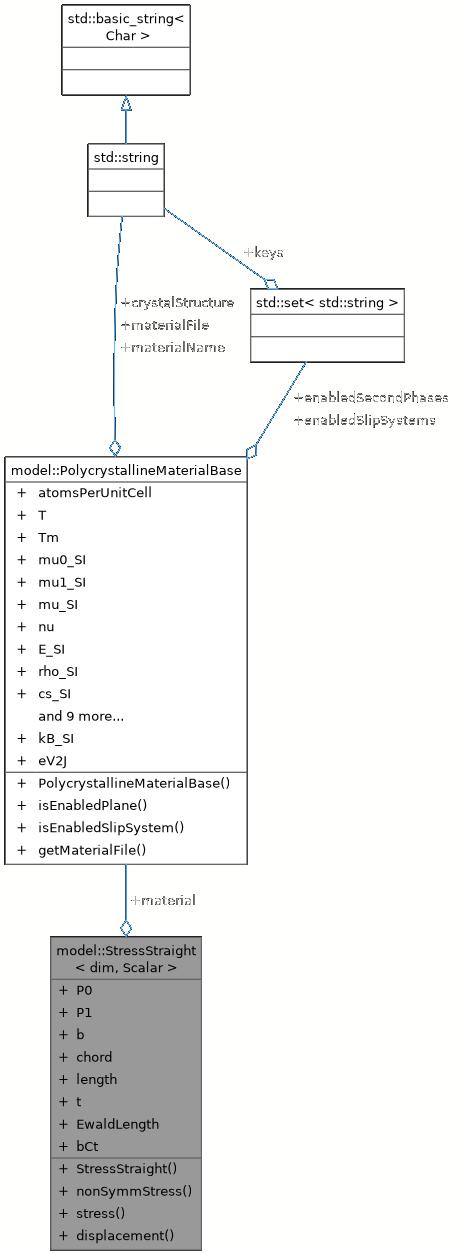

Collaboration diagram for model::StressStraight< dim, Scalar >:

Public Types
typedef Eigen::Matrix< Scalar, dim, dim >	MatrixDim
typedef Eigen::Matrix< Scalar, dim, 1 >	VectorDim

Public Member Functions
	StressStraight (const PolycrystallineMaterialBase &material_in, const VectorDim &_P0, const VectorDim &_P1, const VectorDim &_b, const double &EwaldLength_in)
MatrixDim	nonSymmStress (const VectorDim &x) const
MatrixDim	stress (const VectorDim &x) const
VectorDim	displacement (const VectorDim &x) const

Public Attributes
const PolycrystallineMaterialBase &	material
const VectorDim	P0
const VectorDim	P1
const VectorDim	b
const VectorDim	chord
const double	length
const VectorDim	t
const double	EwaldLength
const VectorDim	bCt

Detailed Description

template<int dim, typename Scalar = double>
class model::StressStraight< dim, Scalar >

Definition at line 24 of file StressStraight.h.

Member Typedef Documentation

MatrixDim

template<int dim, typename Scalar = double>

typedef Eigen::Matrix<Scalar,dim,dim> model::StressStraight< dim, Scalar >::MatrixDim

Definition at line 27 of file StressStraight.h.

VectorDim

template<int dim, typename Scalar = double>

typedef Eigen::Matrix<Scalar,dim,1> model::StressStraight< dim, Scalar >::VectorDim

Definition at line 28 of file StressStraight.h.

Constructor & Destructor Documentation

StressStraight()

template<int dim, typename Scalar>

model::StressStraight< dim, Scalar >::StressStraight	(	const PolycrystallineMaterialBase &	material_in,
		const VectorDim &	_P0,
		const VectorDim &	_P1,
		const VectorDim &	_b,
		const double &	EwaldLength_in )

Parameters

[in]	_P0	starting point of the segment
[in]	_P0	ending point of the segment
[in]	_b	Burgers vector of the segment

Definition at line 150 of file StressStraight.cpp.

Member Function Documentation

displacement()

template<int dim, typename Scalar>

StressStraight< dim, Scalar >::VectorDim model::StressStraight< dim, Scalar >::displacement

(

const VectorDim &

x

)

const

Returns

the line-integral part of the displacement contribution of this straight segment. Note: the return value does NOT include the solid-angle contribution to the displacement field.

Definition at line 182 of file StressStraight.cpp.

nonSymmStress()

template<int dim, typename Scalar>

StressStraight< dim, Scalar >::MatrixDim model::StressStraight< dim, Scalar >::nonSymmStress

(

const VectorDim &

x

)

const

Definition at line 169 of file StressStraight.cpp.

stress()

template<int dim, typename Scalar>

StressStraight< dim, Scalar >::MatrixDim model::StressStraight< dim, Scalar >::stress

(

const VectorDim &

x

)

const

Definition at line 175 of file StressStraight.cpp.

Member Data Documentation

b

template<int dim, typename Scalar = double>

const VectorDim model::StressStraight< dim, Scalar >::b

Definition at line 39 of file StressStraight.h.

bCt

template<int dim, typename Scalar = double>

const VectorDim model::StressStraight< dim, Scalar >::bCt

Definition at line 44 of file StressStraight.h.

chord

template<int dim, typename Scalar = double>

const VectorDim model::StressStraight< dim, Scalar >::chord

Definition at line 40 of file StressStraight.h.

EwaldLength

template<int dim, typename Scalar = double>

const double model::StressStraight< dim, Scalar >::EwaldLength

Definition at line 43 of file StressStraight.h.

length

template<int dim, typename Scalar = double>

const double model::StressStraight< dim, Scalar >::length

Definition at line 41 of file StressStraight.h.

material

template<int dim, typename Scalar = double>

const PolycrystallineMaterialBase& model::StressStraight< dim, Scalar >::material

Definition at line 36 of file StressStraight.h.

P0

template<int dim, typename Scalar = double>

const VectorDim model::StressStraight< dim, Scalar >::P0

Definition at line 37 of file StressStraight.h.

P1

template<int dim, typename Scalar = double>

const VectorDim model::StressStraight< dim, Scalar >::P1

Definition at line 38 of file StressStraight.h.

t

template<int dim, typename Scalar = double>

const VectorDim model::StressStraight< dim, Scalar >::t

Definition at line 42 of file StressStraight.h.

---

The documentation for this class was generated from the following files:

• StressStraight.h
• StressStraight.cpp
