model::ParticleSystemSerial< _ParticleType > Class Template Reference

Serial Version (openMP only). More...

#include <ParticleSystemSerial.h>

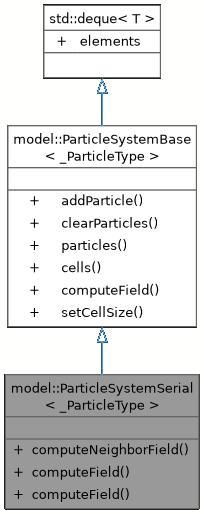

Inheritance diagram for model::ParticleSystemSerial< _ParticleType >:

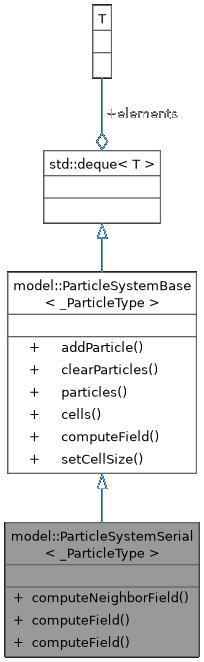

Collaboration diagram for model::ParticleSystemSerial< _ParticleType >:

Public Types
typedef ParticleSystemBaseType::SpatialCellType	SpatialCellType
typedef ParticleSystemBaseType::ParticleContainerType	ParticleContainerType
Public Types inherited from model::ParticleSystemBase< _ParticleType >
typedef _ParticleType	ParticleType
typedef _ParticleType::PositionType	PositionType
typedef SpatialCellObserver< _ParticleType, _ParticleType::dim >	SpatialCellObserverType
typedef SpatialCellObserverType::SpatialCellType	SpatialCellType
typedef std::deque< _ParticleType >	ParticleContainerType

Public Member Functions
template<typename FieldType, typename... OtherSourceTypes>
void	computeNeighborField (const OtherSourceTypes &... otherSources)
template<typename OtherParticleType, typename FieldType, typename... OtherSourceTypes>
void	computeField (std::deque< OtherParticleType > &fpDeq, const OtherSourceTypes &... otherSources) const
template<typename OtherParticleType, typename FieldType, typename... OtherSourceTypes>
void	computeField (OtherParticleType &part, const OtherSourceTypes &... otherSources) const
Public Member Functions inherited from model::ParticleSystemBase< _ParticleType >
template<typename ... AdditionalConstructorTypes>
ParticleType *	addParticle (const PositionType &p, const AdditionalConstructorTypes &... args)
void	clearParticles ()
const ParticleContainerType &	particles () const
const SpatialCellObserverType::CellMapType &	cells () const
template<typename OtherParticleType, typename FieldType, typename... OtherSourceTypes>
void	computeField (OtherParticleType &part, const OtherSourceTypes &... otherSources) const

Friends
template<class T>
T &	operator<< (T &os, const ParticleContainerType &pS)

Additional Inherited Members
Static Public Member Functions inherited from model::ParticleSystemBase< _ParticleType >
static void	setCellSize (const double &cellSize)

Detailed Description

template<typename _ParticleType>
class model::ParticleSystemSerial< _ParticleType >

Serial Version (openMP only).

Definition at line 40 of file ParticleSystemSerial.h.

Member Typedef Documentation

ParticleContainerType

template<typename _ParticleType>

typedef ParticleSystemBaseType::ParticleContainerType model::ParticleSystemSerial< _ParticleType >::ParticleContainerType

Definition at line 49 of file ParticleSystemSerial.h.

SpatialCellType

template<typename _ParticleType>

typedef ParticleSystemBaseType::SpatialCellType model::ParticleSystemSerial< _ParticleType >::SpatialCellType

Definition at line 48 of file ParticleSystemSerial.h.

Member Function Documentation

computeField() [1/2]

template<typename _ParticleType>

template<typename OtherParticleType, typename FieldType, typename... OtherSourceTypes>

void model::ParticleSystemSerial< _ParticleType >::computeField ( OtherParticleType & part, const OtherSourceTypes &... otherSources ) const

inline

Parameters

[in]	part
[in]	otherSources	computes the field FieldType for the only particle part, without parallelization

Definition at line 152 of file ParticleSystemSerial.h.

computeField() [2/2]

template<typename _ParticleType>

template<typename OtherParticleType, typename FieldType, typename... OtherSourceTypes>

void model::ParticleSystemSerial< _ParticleType >::computeField ( std::deque< OtherParticleType > & fpDeq, const OtherSourceTypes &... otherSources ) const

inline

-2 loop over neighbor cells of current particle

-3 loop over particles in the current neighbor cell

Definition at line 102 of file ParticleSystemSerial.h.

computeNeighborField()

template<typename _ParticleType>

template<typename FieldType, typename... OtherSourceTypes>

void model::ParticleSystemSerial< _ParticleType >::computeNeighborField ( const OtherSourceTypes &... otherSources )

inline

-1 loop over all particles in the ParticleSystem (parallelized in OpenMP)

-2 loop over neighbor cells of current particle

-3 loop over particles in the current neighbor cell

Definition at line 54 of file ParticleSystemSerial.h.

Friends And Related Symbol Documentation

operator<<

template<typename _ParticleType>

template<class T>

T & operator<< ( T & os, const ParticleContainerType & pS )

friend

Operator<< use ParticleType-specific operator<<

Definition at line 163 of file ParticleSystemSerial.h.

---

The documentation for this class was generated from the following file:

• ParticleSystemSerial.h
