Class template for a Lagrange finite element of degree p on a d-dimensional Simplex. More...

#include <DiscontinuousLagrangeElement.h>

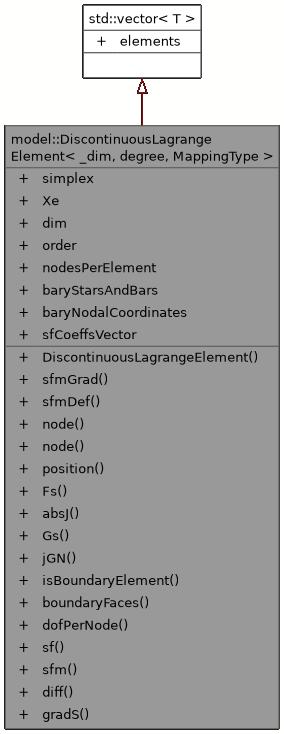

Inheritance diagram for model::DiscontinuousLagrangeElement< _dim, degree, MappingType >:

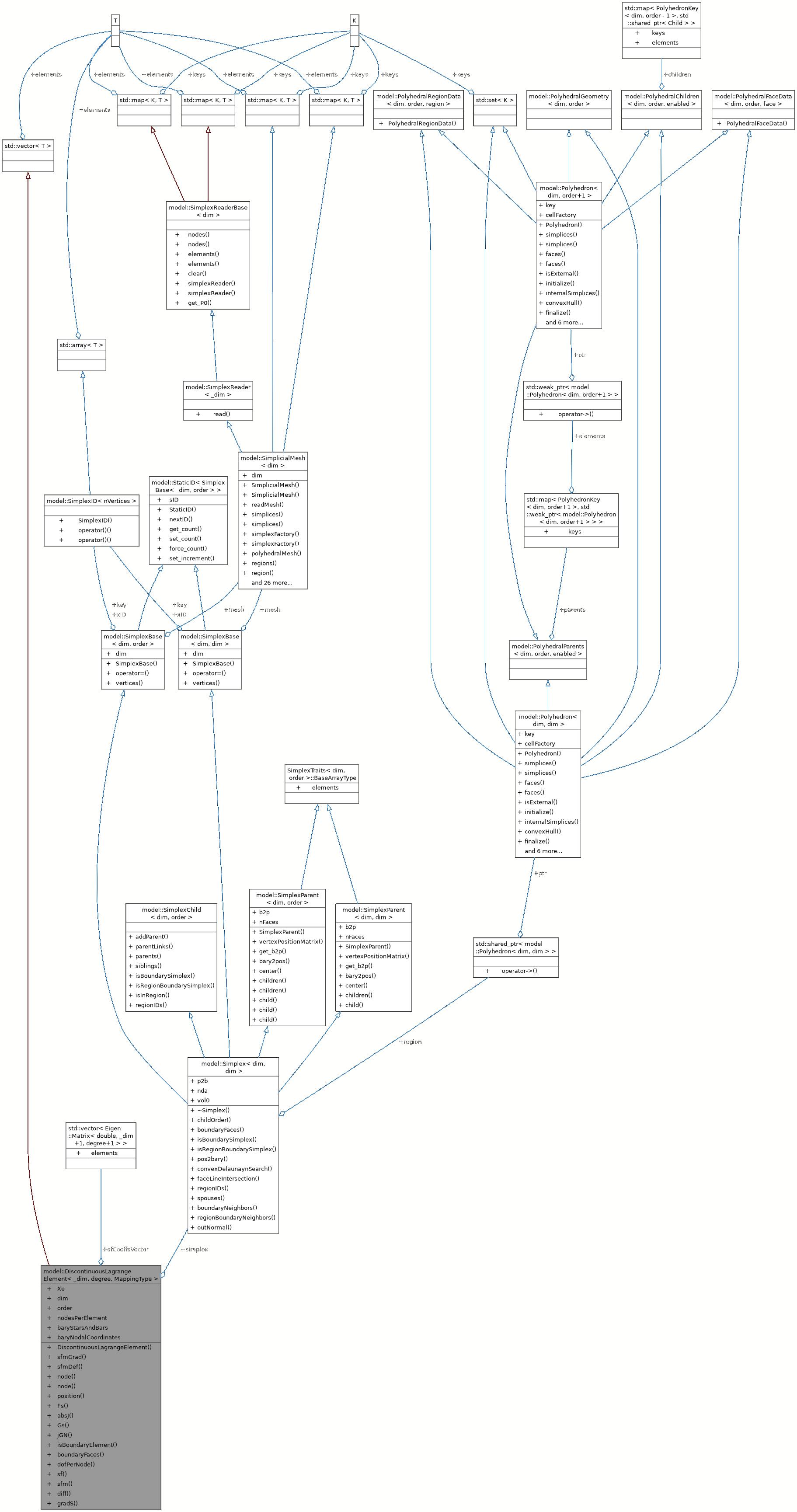

Collaboration diagram for model::DiscontinuousLagrangeElement< _dim, degree, MappingType >:

Public Types
typedef LagrangeNode< ElementType >	NodeType
typedef Eigen::Matrix< double, 1, dim+1 >	BaryType

Public Member Functions
	DiscontinuousLagrangeElement (const Simplex< dim, dim > &s, std::deque< NodeType > &nodeContainer, std::map< Eigen::Matrix< double, dim, 1 >, NodeType const, CompareVectorsByComponent< double, dim, float > > &, std::map< size_t, const NodeType const > &)
template<typename TrialFunctionType>
TypeTraits< TrialFunctionType >::ShapeFunctionGradMatrixType	sfmGrad (const BaryType &bary) const
template<typename TrialFunctionType>
TypeTraits< TrialFunctionType >::ShapeFunctionDefMatrixType	sfmDef (const BaryType &bary) const
const NodeType &	node (const size_t &n) const
NodeType &	node (const size_t &n)
Eigen::Matrix< double, dim, 1 >	position (const BaryType &bary) const
Eigen::Matrix< double, _dim, _dim >	Fs (const BaryType &bary) const
double	absJ (const BaryType &bary) const
Eigen::Matrix< double, _dim, _dim >	Gs (const BaryType &bary) const
Eigen::Matrix< double, dim, 1 >	jGN (const BaryType &bary, const int &n) const
bool	isBoundaryElement () const
std::vector< int >	boundaryFaces () const

Static Public Member Functions
static constexpr int	dofPerNode (int c)
static Eigen::Matrix< double, 1, nodesPerElement >	sf (const BaryType &bary)
template<typename TrialFunctionType>
static TypeTraits< TrialFunctionType >::ShapeFunctionMatrixType	sfm (const BaryType &bary)
static Eigen::Matrix< double, dim+1, nodesPerElement >	diff (const BaryType &bary)
static Eigen::Matrix< double, dim, nodesPerElement >	gradS (const BaryType &bary)

Public Attributes
const Simplex< dim, dim > &	simplex
	A const reference to the Simplex that this element refers to.
Eigen::Matrix< double, _dim, nodesPerElement >	Xe
	The matrix of nodal coordinates.

Static Public Attributes
static constexpr int	dim =_dim
static constexpr int	order =degree
static constexpr int	nodesPerElement =CombinationWithRepetition<_dim+1,degree>::value
static const Eigen::Matrix< int,CombinationWithRepetition< _dim+1, degree >::value, _dim+1 >	baryStarsAndBars
static const Eigen::Matrix< double, CombinationWithRepetition< _dim+1, degree >::value, _dim+1 >	baryNodalCoordinates
static const std::vector< Eigen::Matrix< double, _dim+1, degree+1 > >	sfCoeffsVector

Detailed Description

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>
class model::DiscontinuousLagrangeElement< _dim, degree, MappingType >

Class template for a Lagrange finite element of degree p on a d-dimensional Simplex.

The degrees of freedom for a LagrangeElement are the functinal values computed at the nodes (LagrangeNode). In a d-dimensional Simplex, each node is identified by a set of (d+1) positive integers \(I_k\) which satisfy the Diophantine equation:

\[ \sum_{k=0}^{d+1}I_k=p \]

These integeres are found using the StarsAndBars algorithm. The baricentric (area) coordinate of node \(\{I_k\}\) are obtained as \(A_k=I_k/p\).

The shape function of node \(\{I_k\}\) are:

\[ N_{\{I_k\}}(A_0,\dots A_{d})=\prod_{k=0}^{d+1}\frac{1}{I_k!}\prod_{i=0}^{I_k-1}\left(pA_k-i\right) \]

This can also be written as:

\[ N_{\{I_k\}}(A_0,\dots A_{d})=\prod_{i=0}^{d+1}\left([c_{i0},\dots,c_{ip}]\cdot[A_i^0,\dots,A_i^p]\right) \]

The matrix \(c_{ij}\) is stored in the field sfCoeffs;

Definition at line 58 of file DiscontinuousLagrangeElement.h.

Member Typedef Documentation

◆ BaryType

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

typedef Eigen::Matrix<double,1,dim+1> model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::BaryType

Definition at line 71 of file DiscontinuousLagrangeElement.h.

◆ NodeType

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

typedef LagrangeNode<ElementType> model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::NodeType

Definition at line 70 of file DiscontinuousLagrangeElement.h.

Constructor & Destructor Documentation

◆ DiscontinuousLagrangeElement()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::DiscontinuousLagrangeElement	(	const Simplex< dim, dim > &	s,
		std::deque< NodeType > &	nodeContainer,
		std::map< Eigen::Matrix< double, dim, 1 >, NodeType *const, CompareVectorsByComponent< double, dim, float > > &	,
		std::map< size_t, const NodeType *const > &	)

inline

Parameters

[in] s A const reference to a Simplex<dim,dim>

Definition at line 208 of file DiscontinuousLagrangeElement.h.

Member Function Documentation

◆ absJ()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

double model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::absJ ( const BaryType & bary ) const

inline

Parameters

bary	the vector of baricentric coordinates

Returns: the absolute value of the determinant of the Jacobian matrix dx_i / ds_j, evaulated at bary.

Definition at line 404 of file DiscontinuousLagrangeElement.h.

◆ boundaryFaces()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

std::vector< int > model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::boundaryFaces ( ) const

inline

Returns: a vector of IDs of the faces of *this that are on the boundary

Definition at line 434 of file DiscontinuousLagrangeElement.h.

◆ diff()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

Eigen::Matrix< double, dim+1, nodesPerElement > model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::diff ( const BaryType & bary )

inlinestatic

Parameters

[in] bary the barycentric coordinate

Returns: the value of the derivatives of this shape-function with respect to the baricentric coordinates, computed at bary. This is:
\[ dN_{\{I_k\}}/dA_j(A_0,\dots A_{d}) \]

Definition at line 306 of file DiscontinuousLagrangeElement.h.

◆ dofPerNode()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

constexpr int model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::dofPerNode ( int c )

inlinestaticconstexpr

Definition at line 68 of file DiscontinuousLagrangeElement.h.

◆ Fs()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

Eigen::Matrix< double, _dim, _dim > model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::Fs ( const BaryType & bary ) const

inline

Parameters

bary	the vector of baricentric coordinates

Returns: the Jacobian matrix dx_i / ds_j, evaulated at bary.

Definition at line 396 of file DiscontinuousLagrangeElement.h.

◆ gradS()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

Eigen::Matrix< double, dim, nodesPerElement > model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::gradS ( const BaryType & bary )

inlinestatic

Parameters

[in] bary the barycentric coordinate

Returns: the gradient of this shape-function with respect to the standard coordinates, computed at bary. This is:
\[ dN_{\{I_k\}}/dS_j(A_0,\dots A_{d}) \]

Definition at line 331 of file DiscontinuousLagrangeElement.h.

◆ Gs()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

Eigen::Matrix< double, _dim, _dim > model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::Gs ( const BaryType & bary ) const

inline

Parameters

bary	the vector of baricentric coordinates

Returns: the inverse Jacobian matrix ds_i / dx_j, evaulated at bary.

Definition at line 413 of file DiscontinuousLagrangeElement.h.

◆ isBoundaryElement()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

bool model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::isBoundaryElement ( ) const

inline

Returns: true if *this is a boundary element

Definition at line 427 of file DiscontinuousLagrangeElement.h.

◆ jGN()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

Eigen::Matrix< double, dim, 1 > model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::jGN	(	const BaryType &	bary,
		const int &	n ) const

inline

Definition at line 421 of file DiscontinuousLagrangeElement.h.

◆ node() [1/2]

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

NodeType & model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::node ( const size_t & n )

inline

Parameters

[in] the local node ID in the element

Returns: a reference to the n-th LagrangeNode

Definition at line 379 of file DiscontinuousLagrangeElement.h.

◆ node() [2/2]

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

const NodeType & model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::node ( const size_t & n ) const

inline

Parameters

[in] the local node ID in the element

Returns: a reference to the n-th LagrangeNode

Definition at line 370 of file DiscontinuousLagrangeElement.h.

◆ position()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

Eigen::Matrix< double, dim, 1 > model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::position ( const BaryType & bary ) const

inline

Parameters

[in] bary the vector of barycentric coordinate

Returns: the position vector corresponding to bary

Definition at line 388 of file DiscontinuousLagrangeElement.h.

◆ sf()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

Eigen::Matrix< double, 1, nodesPerElement > model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::sf ( const BaryType & bary )

inlinestatic

Parameters

[in] bary the vector of barycentric coordinates

Returns: a row vector of the the shape-functions, evaluated at bary. This is:
\[ N_{\{I_k\}}(A_0,\dots A_{d})=\prod_{i=0}^{d+1}\left([c_{i0},\dots,c_{ip}]\cdot[A_i^0,\dots,A_i^p]\right) \]

Definition at line 276 of file DiscontinuousLagrangeElement.h.

◆ sfm()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

template<typename TrialFunctionType>

TypeTraits< TrialFunctionType >::ShapeFunctionMatrixType model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::sfm ( const BaryType & bary )

inlinestatic

Parameters

[in] bary the vector of barycentric coordinates

Returns: a row vector of the the shape-functions, evaluated at bary. This is:
\[ N_{\{I_k\}}(A_0,\dots A_{d})=\prod_{i=0}^{d+1}\left([c_{i0},\dots,c_{ip}]\cdot[A_i^0,\dots,A_i^p]\right) \]

Definition at line 294 of file DiscontinuousLagrangeElement.h.

◆ sfmDef()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

template<typename TrialFunctionType>

TypeTraits< TrialFunctionType >::ShapeFunctionDefMatrixType model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::sfmDef ( const BaryType & bary ) const

inline

Parameters

[in] bary the vector of barycentric coordinates

Returns: A matrix of the symmetric gradient of the shape-functions, evaluated at bary. Symmetric gradients are interpreted in egineering sense.

Definition at line 359 of file DiscontinuousLagrangeElement.h.

◆ sfmGrad()

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

template<typename TrialFunctionType>

TypeTraits< TrialFunctionType >::ShapeFunctionGradMatrixType model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::sfmGrad ( const BaryType & bary ) const

inline

Parameters

[in] bary the vector of barycentric coordinates

Returns: the gradient of the shape-functions, evaluated at bary. This is the matrix :
\[ M_{ij}=\frac{\partial N_j}{\partial x_i} \]

Definition at line 344 of file DiscontinuousLagrangeElement.h.

Member Data Documentation

◆ baryNodalCoordinates

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

const Eigen::Matrix<double,CombinationWithRepetition<_dim+1,degree>::value,_dim+1> model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::baryNodalCoordinates

static

Definition at line 197 of file DiscontinuousLagrangeElement.h.

◆ baryStarsAndBars

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

const Eigen::Matrix<int ,CombinationWithRepetition<_dim+1,degree>::value,_dim+1> model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::baryStarsAndBars

static

Definition at line 196 of file DiscontinuousLagrangeElement.h.

◆ dim

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

int model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::dim =_dim

staticconstexpr

Definition at line 65 of file DiscontinuousLagrangeElement.h.

◆ nodesPerElement

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

int model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::nodesPerElement =CombinationWithRepetition<_dim+1,degree>::value

staticconstexpr

Definition at line 67 of file DiscontinuousLagrangeElement.h.

◆ order

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

int model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::order =degree

staticconstexpr

Definition at line 66 of file DiscontinuousLagrangeElement.h.

◆ sfCoeffsVector

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

const std::vector<Eigen::Matrix<double,_dim+1,degree+1> > model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::sfCoeffsVector

static

Definition at line 198 of file DiscontinuousLagrangeElement.h.

◆ simplex

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

const Simplex<dim,dim>& model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::simplex

A const reference to the Simplex that this element refers to.

Definition at line 201 of file DiscontinuousLagrangeElement.h.

◆ Xe

template<int _dim, int degree, template< typename T > class MappingType = IsoparametricMapping>

Eigen::Matrix<double,_dim,nodesPerElement> model::DiscontinuousLagrangeElement< _dim, degree, MappingType >::Xe

The matrix of nodal coordinates.

Definition at line 204 of file DiscontinuousLagrangeElement.h.

The documentation for this class was generated from the following file:

DiscontinuousLagrangeElement.h

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Detailed Description

Member Typedef Documentation

◆ BaryType

◆ NodeType

Constructor & Destructor Documentation

◆ DiscontinuousLagrangeElement()

Member Function Documentation

◆ absJ()

◆ boundaryFaces()

◆ diff()

◆ dofPerNode()

◆ Fs()

◆ gradS()

◆ Gs()

◆ isBoundaryElement()

◆ jGN()

◆ node() [1/2]

◆ node() [2/2]

◆ position()

◆ sf()

◆ sfm()

◆ sfmDef()

◆ sfmGrad()

Member Data Documentation

◆ baryNodalCoordinates

◆ baryStarsAndBars

◆ dim

◆ nodesPerElement

◆ order

◆ sfCoeffsVector

◆ simplex

◆ Xe
