model::BiCrystal< dim > Class Template Reference

#include <BiCrystal.h>

Inheritance diagram for model::BiCrystal< dim >:

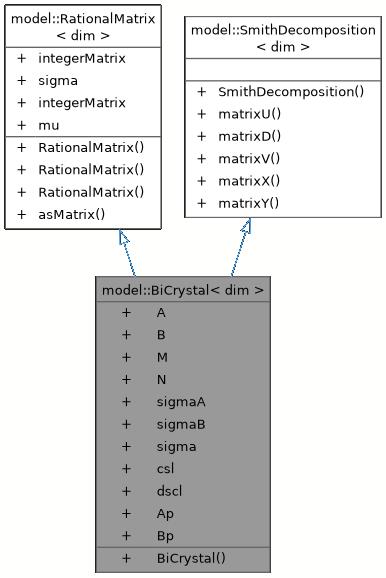

Collaboration diagram for model::BiCrystal< dim >:

Public Member Functions
	BiCrystal (const Lattice< dim > &A, const Lattice< dim > &B, const bool &useRLLL=true)
Public Member Functions inherited from model::RationalMatrix< dim >
	RationalMatrix (const MatrixDimD &R)
	RationalMatrix (const MatrixDimD &R)
	RationalMatrix (const MatrixDimI &Rn, const IntScalarType &Rd)
MatrixDimD	asMatrix () const
Public Member Functions inherited from model::SmithDecomposition< dim >
	SmithDecomposition (const MatrixNi &A)
const MatrixNi &	matrixU () const
const MatrixNi &	matrixD () const
const MatrixNi &	matrixV () const
const MatrixNi &	matrixX () const
const MatrixNi &	matrixY () const

Public Attributes
const Lattice< dim > &	A
const Lattice< dim > &	B
const MatrixDimI	M
const MatrixDimI	N
const int	sigmaA
const int	sigmaB
const int	sigma
const Lattice< dim >	csl
const Lattice< dim >	dscl
const Lattice< dim >	Ap
const Lattice< dim >	Bp
Public Attributes inherited from model::RationalMatrix< dim >
const MatrixInt &	integerMatrix
const IntValueType &	sigma
const MatrixDimI &	integerMatrix
const IntScalarType &	mu

Detailed Description

template<int dim>
class model::BiCrystal< dim >

Class template that computes the Coincident Site Lattice (CSL) of two parent lattices using the Smith decomposition method [1].

[1] Coincidence Lattices and Associated Shear Transformations

Definition at line 25 of file BiCrystal.h.

Constructor & Destructor Documentation

BiCrystal()

template<int dim>

model::BiCrystal< dim >::BiCrystal	(	const Lattice< dim > &	A,
		const Lattice< dim > &	B,
		const bool &	useRLLL = true )

Definition at line 117 of file BiCrystal.cpp.

Member Data Documentation

A

template<int dim>

const Lattice<dim>& model::BiCrystal< dim >::A

Definition at line 52 of file BiCrystal.h.

Ap

template<int dim>

const Lattice<dim> model::BiCrystal< dim >::Ap

Definition at line 61 of file BiCrystal.h.

B

template<int dim>

const Lattice<dim>& model::BiCrystal< dim >::B

Definition at line 53 of file BiCrystal.h.

Bp

template<int dim>

const Lattice<dim> model::BiCrystal< dim >::Bp

Definition at line 62 of file BiCrystal.h.

csl

template<int dim>

const Lattice<dim> model::BiCrystal< dim >::csl

Definition at line 59 of file BiCrystal.h.

dscl

template<int dim>

const Lattice<dim> model::BiCrystal< dim >::dscl

Definition at line 60 of file BiCrystal.h.

M

template<int dim>

const MatrixDimI model::BiCrystal< dim >::M

Definition at line 54 of file BiCrystal.h.

N

template<int dim>

const MatrixDimI model::BiCrystal< dim >::N

Definition at line 55 of file BiCrystal.h.

sigma

template<int dim>

const int model::BiCrystal< dim >::sigma

Definition at line 58 of file BiCrystal.h.

sigmaA

template<int dim>

const int model::BiCrystal< dim >::sigmaA

Definition at line 56 of file BiCrystal.h.

sigmaB

template<int dim>

const int model::BiCrystal< dim >::sigmaB

Definition at line 57 of file BiCrystal.h.

---

The documentation for this class was generated from the following files:

• BiCrystal.h
• BiCrystal.cpp
